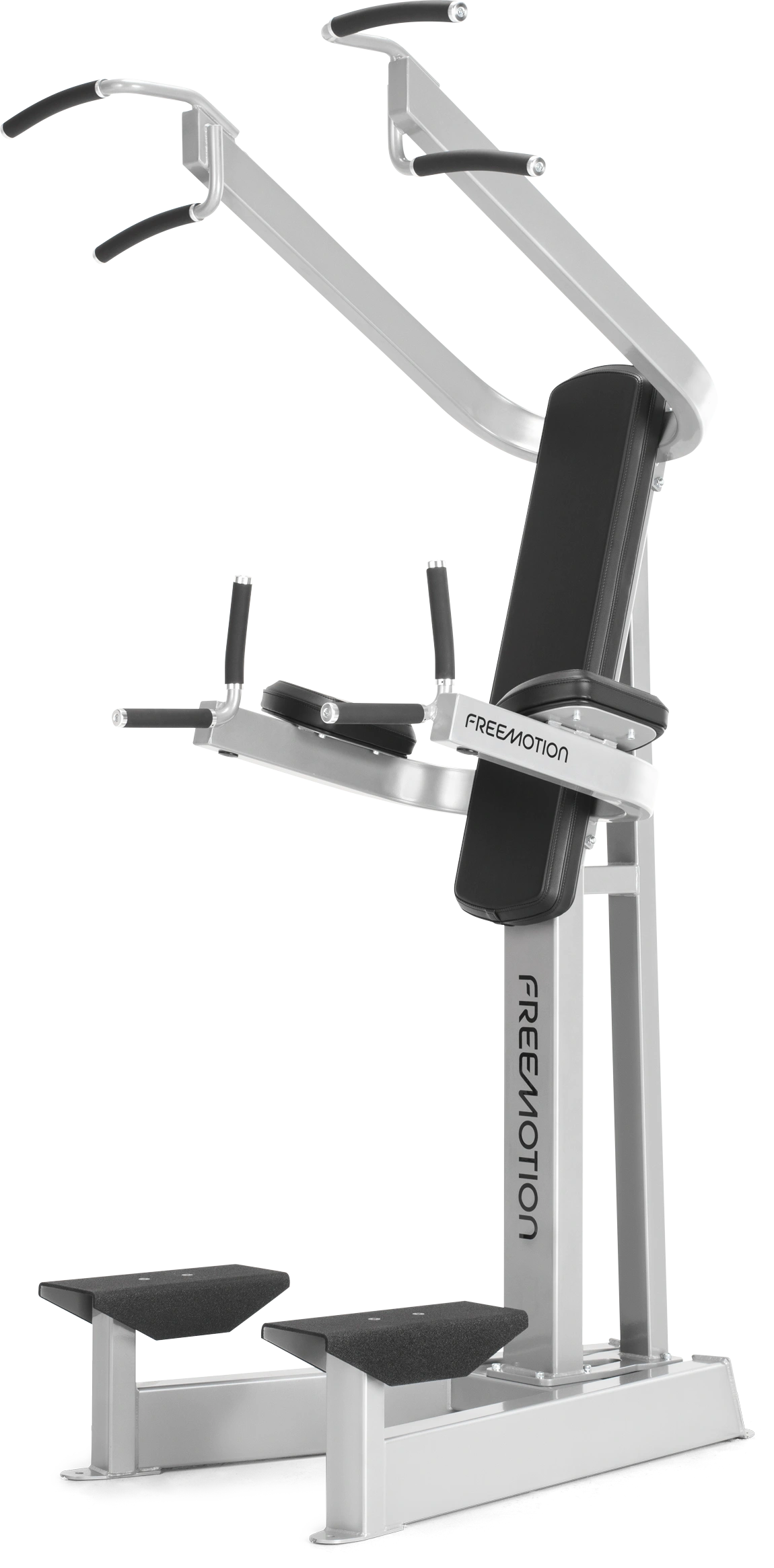

Freemotion EF207 Dip Chin/Ab
With three workout stations in one convenient machine, the EPIC Dip-Chin-Ab targets the back, biceps, triceps, and abs. Curved handles create multiple grips for chin-up exercises while comfortable, big padded elbow rests are angled to guide proper form. Line-X® textured foot platforms provides a secure step transition, while pre-drilled holes can be bolted to the floor for safety and stability. Built with heavy-duty steel and electrostatically powder-coated, the EPIC Dip-Chin-Ab is a safe, versatile addition to your workout circuit.
FEATURES
Smart curved handles
The design of these curved handles creates multiple grips to help with chin-up exercises.
Stay focused on the workout
To guide the member to use proper form, these high-quality vinyl padded armrests are angled and made with thick 1.5 in foam.
Stand tall
Platform is coated with Line-X® to to provide a secure step transition.
Bolt-down holes
For added safety, this Dip Chin-Ab can be bolted to the floor through pre-drilled holes.
Industrial construction
The Dip Chin-Ab is built with heavy-duty steel. It’s also electrostatically powder-coated for a commercial, sleek finish.
Customizable color options
A variety of color options are available to match your gym or specific color preferences. A surcharge may apply.
PRODUCT SPECIFICATIONS
Standard Frame Colors
Platinum Sparkle
Optional Frame Colors*
Black River
Standard Upholstery Colors
Black
Optional Upholstery Colors*
Graphite, Blue Ridge, Burgundy, American Beauty Red, Grand Sierra Wheat
Hand Grip Colors
Black
Upholstery
Stretched/Sewn vinyl
1.5 in (3.8 cm) thick foam
Max User Weight
350 lbs (159 kg)
Max Total Weight
600 lbs (272.1 kg)
Workout Area
15.67 ft² (1.46 m²)
Product Dimensions (LxWxH)
47 x 48 x 93 in
(119.3 x 121.9 x 236.2 cm)
Shipping Dimensions (LxWxH)
Box 1: 71.3 x 31.3 x 14.8 in
(181.1 x 79.5 x 37.5 cm)
Box 2: 42.1 x 11 x 5.7 in
(106.9 x 27.9 x 14.4 cm)
Product Weight
268.9 lbs (122 kg)
Shipping Weight
Box 1: 300 lbs (136 kg)
Box 2: 10 lbs (4.5 kg)
Regulatory Approval
EN957, CE
*Please call 702-478-7387 if you’d like to place an order for one of the optional frame/upholstery colors listed.
